| Video Input | |
| IP Camera Input | 8 Channel |
| Incoming Bandwidth | 56 Mbps |
| Outgoing Bandwidth | 56 Mbps |
| Video Output | |
| HDMI Output | 3840×2160,1920×1080, 1280×1024, 1024×768 |
| VGA Output | 1920×1080, 1280×1024, 1024×768 |
| Decoding Capacity | 1ch 8MP, 4ch 1080P, 8ch D1@30fps |
| Dual Stream | Support |
| Multi-screen Display | 1/4/9 |
| Recoding | |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
| Recording Mode | Manual, Schedule (Regular, Continuous), Event |
| Trigger Events | Motion Detection, Video Loss, Alarm input |
| Playback and Backup | |
| Sync Playback | 9/4/1 |
| Search Mode | Time /Date, Alarm, Picture grid, Event |
| Backup Mode | USB Device, Network |
| Alarm | |
| General Alarm | Motion Detection, Video Loss, Alarm in, Alarm out (by camera) |
| Abnormal Alarm | Disk Alarm, IP Address Conflict, Network Disconnect |
| Intelligent Analysis | Intrusion (support the accurate detection of vehicle and human) |
| Network | |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
| Remote Users | 8 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF, SDK, CGI |
| Storage | |
| HDD | 2 SATA Ports, up to 12TB for each HDD |

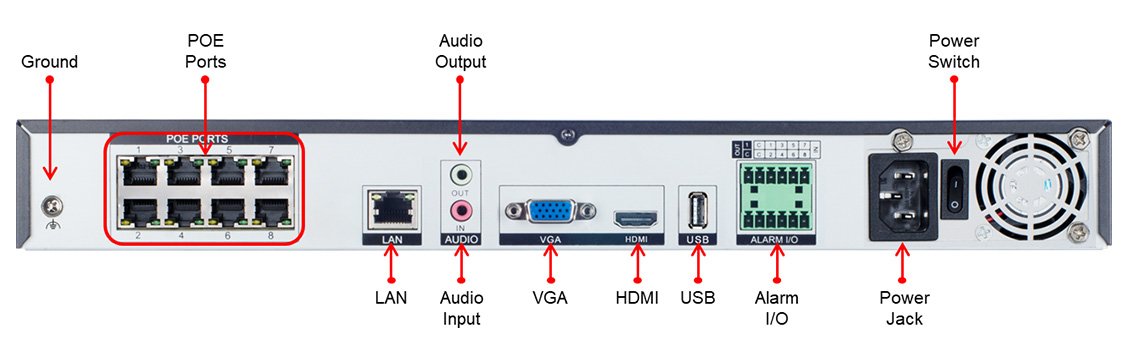

| Interface | |
| Network | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| PoE | 8 Ports (IEEE 802.3af), 64W |
| HDMI | 1 |
| VGA | 1 |
| Audio I/O | 1/1 |
| Alarm I/O | 8/1 |
| USB | 3 ports (USB 2.0 ×3) |
| General | |
| Power Supply | AC100 ~ 240V |
| Power Consumption | < 15 W (without HDD) |
| Operating Conditions | -10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) |
| Storage Conditions | Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | 372×310.5× 46.5 mm (16.65× 12.2×2.2 inch) |
| Net Weight | 2.1 kg (4.63 lb) without HDD |
